We offer state-of-the-art custom made tanks.

BET is a specialist in custom made tank construction. We offer conical fermentation tanks, traditional open fermentation tanks, bright beer tanks, lager tanks, yeast storage and propagation tanks, dry hopping tanks as well as hot and cold water tanks.

Our brewmasters and technical engineers design all our tanks according to the specifications requested by our customers. All our tanks are tested according to Japanese pressure vessel and food safety regulations.

Using only state of the art technology and continuously improving our tank design we have been supplying high quality stainless steel tanks at a very competitive price for over 10 years to our customers all over Japan.

  • タンク
  • タンク
  • タンク
  • タンク
  • タンク
  • タンク
  • タンク
  • タンク
  • タンク
  • タンク

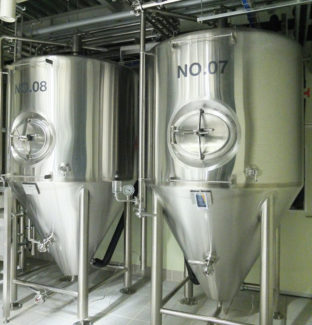

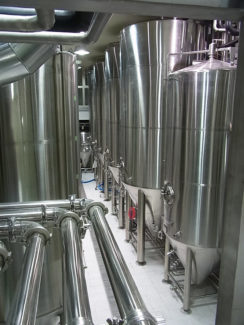

Conical Fermentation Tanks
  • Made in stainless steel 304
  • Volume between 200 L. and 200 HL
  • Wall thickness 3mm or 4 mm
  • All welds pickled and passivated
  • 60 deg. cone
  • Cooling jackets in cone and cylinder
  • CIP line and ball, second line on request
  • Shadowless manway in cylinder or on top
  • Cone and cylinder insulated by PU foam
  • Stainless cladding, completely welded
  • All necessary connections for sampling, spunding, pressure valve and security valve (pressure and vacuum)
  • Further connections on request
  • High quality armatures (3 A or CE)included
  • One or two outlets
  • Four height adjustable feet
  • Tank dimensions based on your requirements
  • CE certification on request
発酵タンク‐コニカルタイプ
Open Fermentation Tanks
  • Made in stainless steel 304
  • Volume between 100 L. and 50 HL
  • For pressure-less operation
  • With stainless steel cover – easy to open/close
  • All weldings pickled and passivated
  • Flat bottom with 3-4 deg. slope
  • Cooling jackets in cylinder
  • CIP connection and ball in cover
  • Bottom and cylinder insulated by PU foam
  • Stainless cladding, completely welded
  • All necessary connections
  • Further connections on request
  • High quality armatures (3 A or CE)included
  • Two outlets
  • Height adjustable feet
  • Dimensions based on your requirements
オープン式発酵タンク
Bright Beer & Lager Tanks
  • Made in 304 stainless steel
  • Volume between 200 L. and 200 HL
  • Wall thickness 3mm or 4 mm
  • All welds pickled and passivated
  • Dished bottom
  • Cooling jackets in bottom and cylinder
  • CIP line and ball, second line on request
  • Shadowless man-way in cylinder or on top
  • Bottom and cylinder insulated by PU foam
  • Stainless cladding, completely welded
  • All necessary connections for sampling, spunding, pressure valve, temperature sensors and security valve pressure and vacuum
  • Further connections on request
  • High quality armatures (3 A or CE)included
  • One outlet
  • CE certification on request
  • Four height adjustable feet
  • Tank dimensions based on your requirements
熟成タンク/貯蔵タンク/ブライトビールタンク

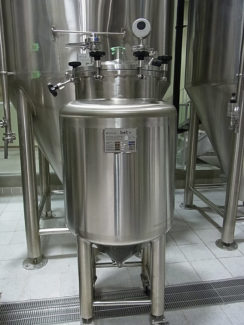

Yeast Tanks
  • Made in stainless steel 304
  • Wall thickness 3mm or 4 mm
  • All welds pickled and passivated
  • 60 deg. cone
  • Cooling jackets in cone and cylinder
  • CIP line and ball, second line on request
  • Cone and cylinder insulated by PU foam
  • Stainless cladding, completely welded
  • All necessary connections for sampling, spunding, pressure valve and security valve (pressure and vacuum)
  • Further connections on request
  • High quality armatures (3 A or CE)included
  • Four height adjustable feet
  • Tank dimensions based on your requirements
  • CE certification on request
イーストタンク / イースト培養システム
Dry Hopping Tanks
  • Works with leaf hops and pellets
  • Made in stainless steel 304
  • Wall thickness 3mm or 4 mm
  • All welds pickled and passivated
  • CIP line and ball
  • Stainless cladding, completely welded
  • High quality armatures (3 A or CE)included
  • Tank dimensions based on your requirements
  • CE certification on request
ドライホッピングタンク
Hot & Cold Water Tanks
  • Made in stainless steel 304
  • Wall thickness 3mm or 4 mm
  • All welds pickled and passivated
  • CIP line and ball
  • Stainless cladding, completely welded
  • High quality armatures (3 A or CE)included
  • Tank dimensions based on your requirements
  • CE certification on request
温水タンク / 冷水タンク
